SS-T1Y-100

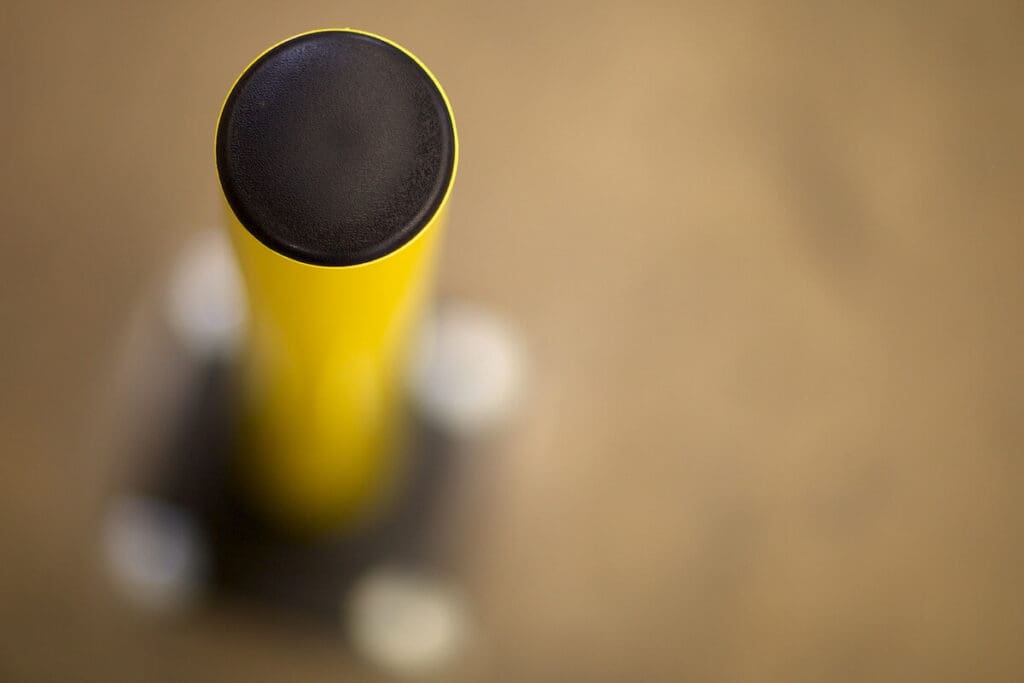

Rebounding Steel Bollard Type 1

Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1
Rebounding Steel Bollard Type 1

Protect pallet rack, equipment, vehicles, and pedestrians from damaging collisions with this incredibly strong surface mount bollard that absorbs energy and rebounds to its original position without damage. Ideal for light applications such as pallet jacks, electric carts, light fork trucks and low speed passenger vehicles, this flexible steel bollard is 100 cm tall and stops 3,000 kg at 3.7 kph (1.620 joules) without suffering damage. Great for automotive applications.

The Type 1 Bollard kit comes with everything needed to install a single rebounding SlowStop® bollard, including anchors. The bollard pipe is undercoated then finished with a durable yellow powder coat and black cap. Reduce damage. Stop repairing and replacing bollards and concrete foundations. Facility maintenance and safety has never been easier. Custom heights and color are available.

Specifications

  • Color
    RAL 1023 Yellow Pipe on RAL 9005 Black Pedestal
  • Diameter
    76,1mm (5mm wall)
  • Impact Rating
    7.000 joules, 128,8 kN
  • Temperature Rating
    -40°C - 70°C
  • Pipe Coating
    EN-ISO 1461 Galvanized + Polyester Powder Coating
  • Cast-Iron Coating
    Environmentally Friendly Water-based KTL Coating + Polyester Powder Coating. C5I corrosion resistance.
  • Set Screws
    Five (5) M12 x 1,75, 6mm Hex
  • Anchor Screws
    Four (4) M16x140 Concrete
  • Cap
    Black Plastic
