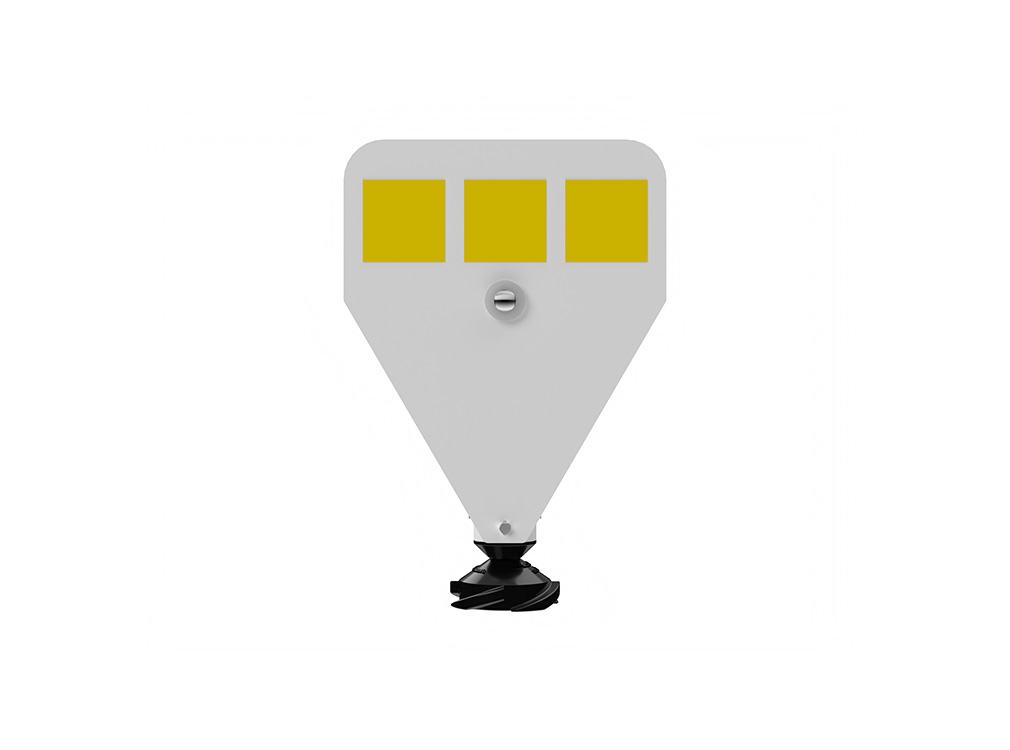

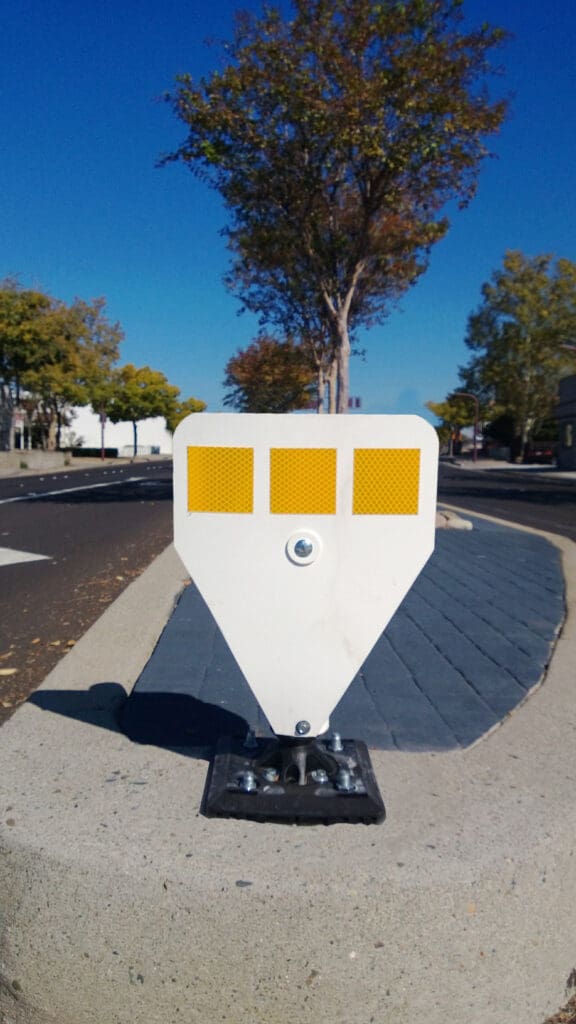

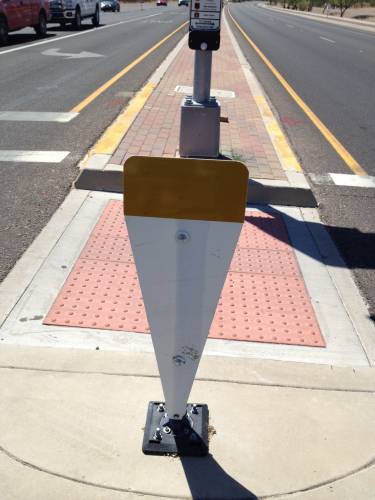

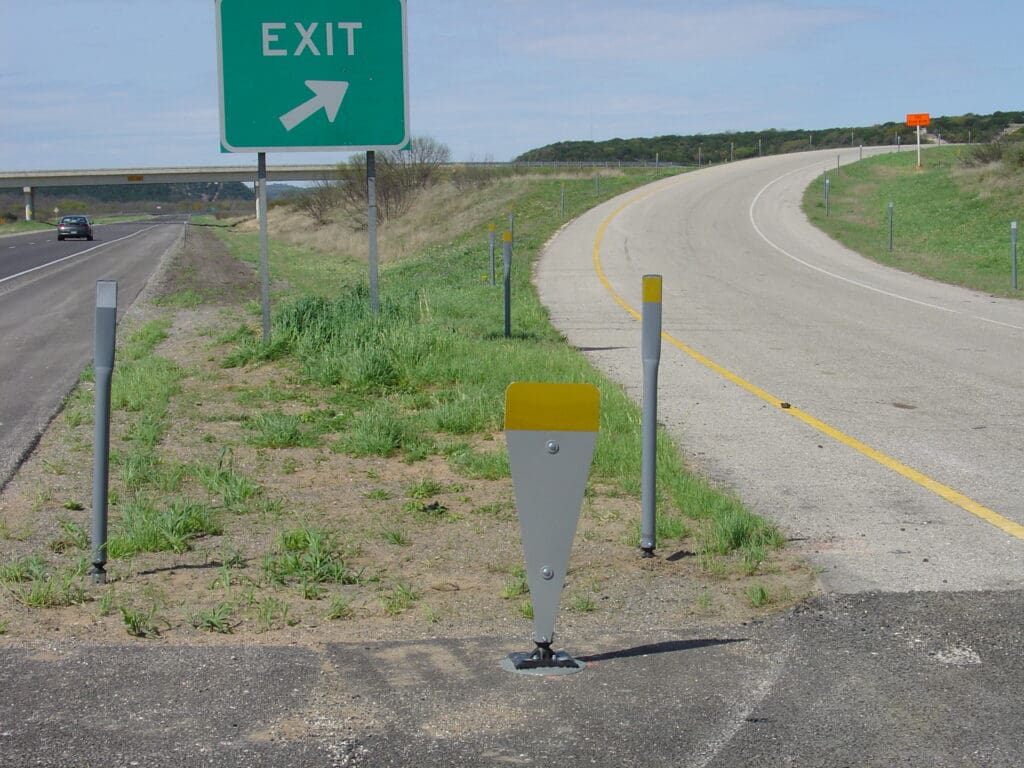

Object Markers Type 2 are used to mark obstructions adjacent to the roadway. They are ideal for marking island ends, gore areas, bridge abutments, and other similar obstructions. Markers come standard with our patented anti-twist reactive spring system to return the unit to its original, upright position after it has been struck.

Benefits

  • Highly reflective
  • Unit has anti-twist reactive spring assembly that rebounds panel to its original upright, forward-facing position when struck
  • Yields fully upon impact
  • Constructed of flexible plastic that is resistant to ultraviolet light, ozone and hydrocarbons
  • Category 1 Self Certified
  • Federal Acceptance: WZ-2A

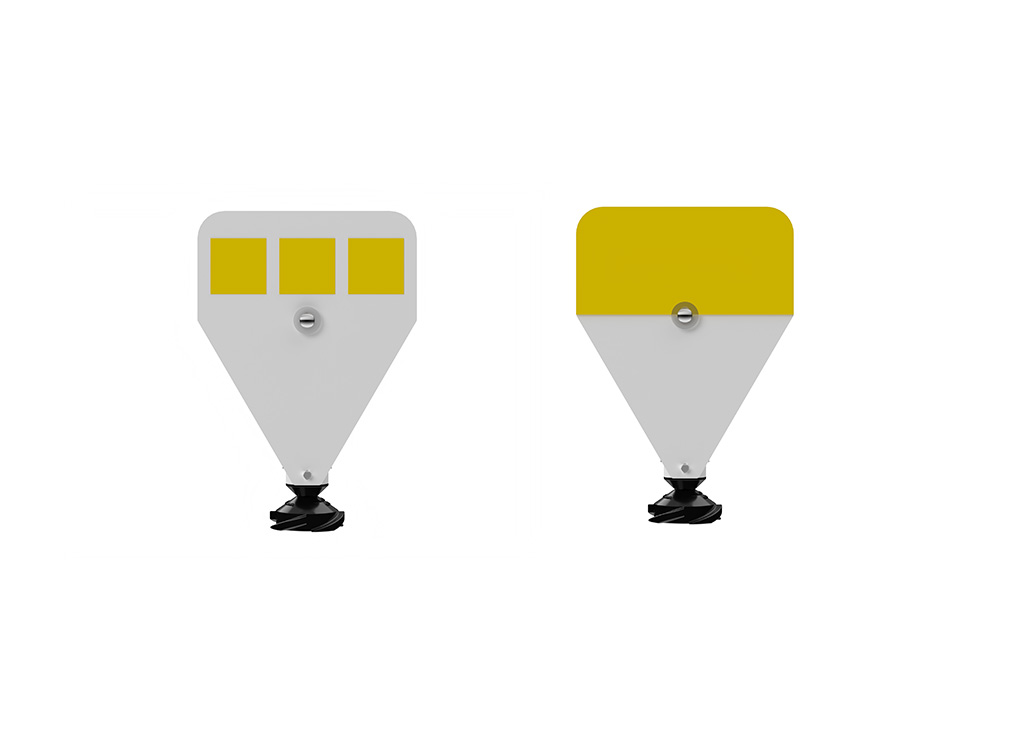

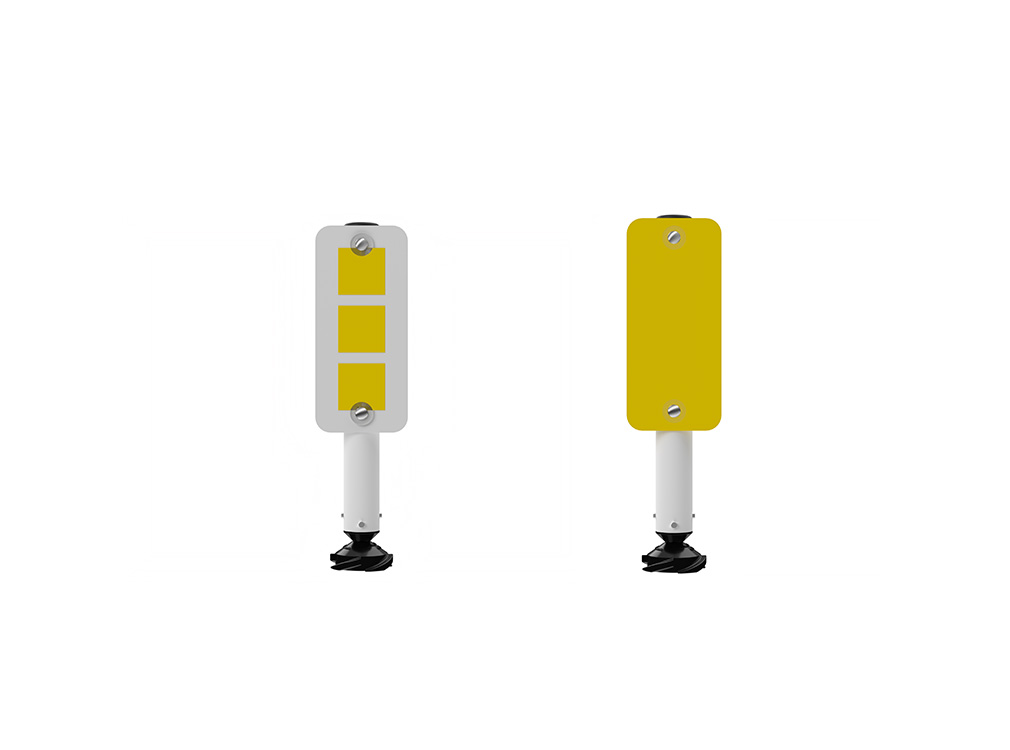

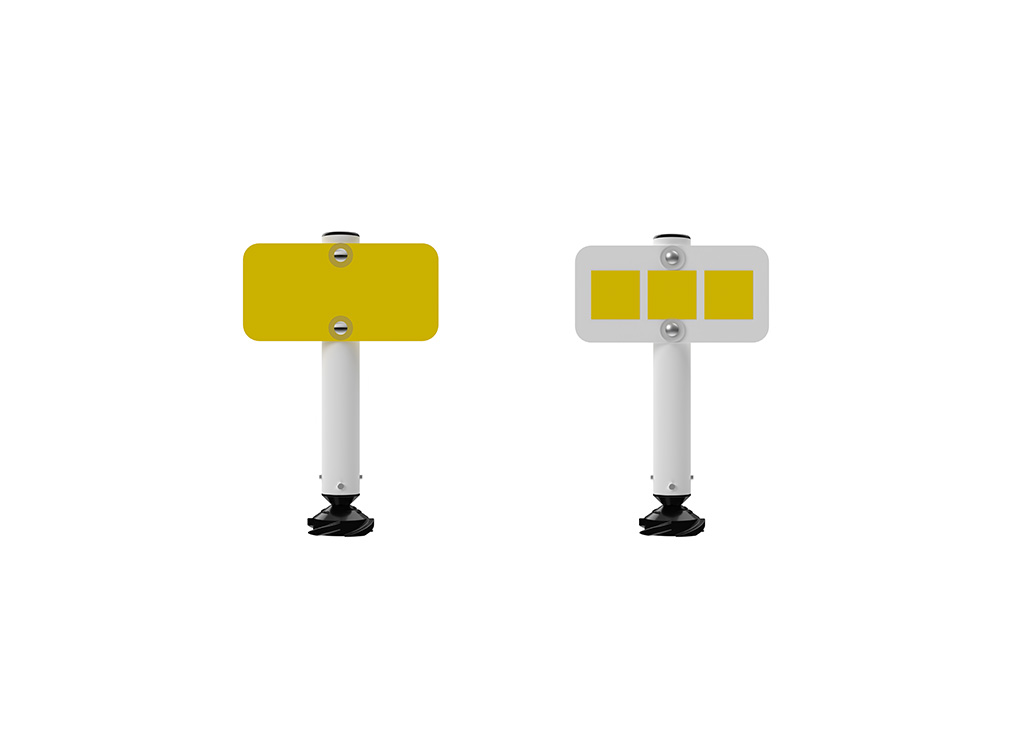

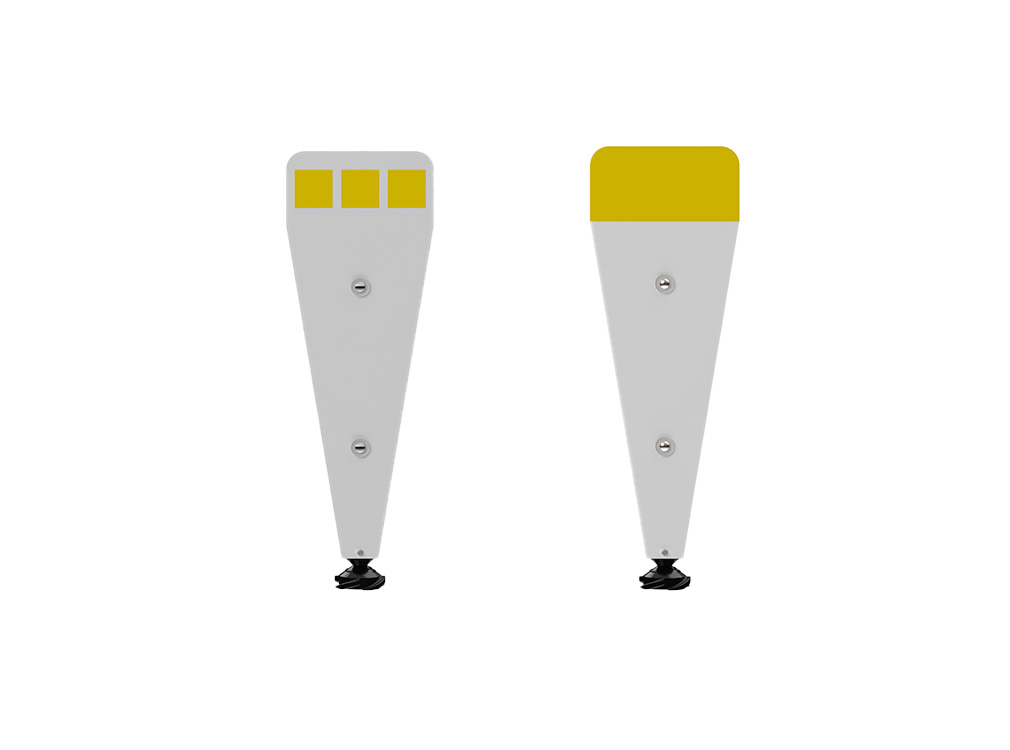

Type II Object Marker Options: 12″ x 36″ Object Marker, 12″ x 18″ Object Marker, K-1 Marker, K-2 Marker

Specifications

  • Marker Type
    Three Sheeting Squares or Single Reflective Sheet
  • Reflective Sheeting Pattern
    3" x 3" (Three Sheeting Squares) or 12" x 6" (Single Reflective Sheet)
  • Dimensions
    12" x 36," 12" x 18," 6" x 21"
  • Post
    White post with cap - 2.375"; height is dependent on marker type
  • Panel
    White polyethylene plastic
  • Reflective Sheeting
    Type IV, Type VIII
  • Spring Type
    Fixed, Drivable
  • Compatibility
    Surface Mount (Fixed), Drivable
